Energy Storage & Smart Micro-grid System Solution
Smart micro-grid is a small-scale smart power generation and distribution system and a confluence of distributed power supply, energy storage devices, energy conversion devices, related load & monitoring and protective devices. It is an autonomous system that can realize self-control, self-protection and self-management, which is capable of grid-connected operation with external power grid as well as isolated operation.
Micro grid system is usually applied to middle / low voltage power distribution network, intermingles with various forms of energy devices to provide cleaner, more efficient and more stable power for loads.
Micro-grid can not only solve the access problem of large scale distributed energy generation system, but also bring other benefits to users, becoming the beneficial supplement to large power grid. Owing to this potential advantage, micro-grid, as a possible energy supply mode in the future, has been being attached more and more attention.
01. Grid-connected Micro-grid System Solutions
System configurations

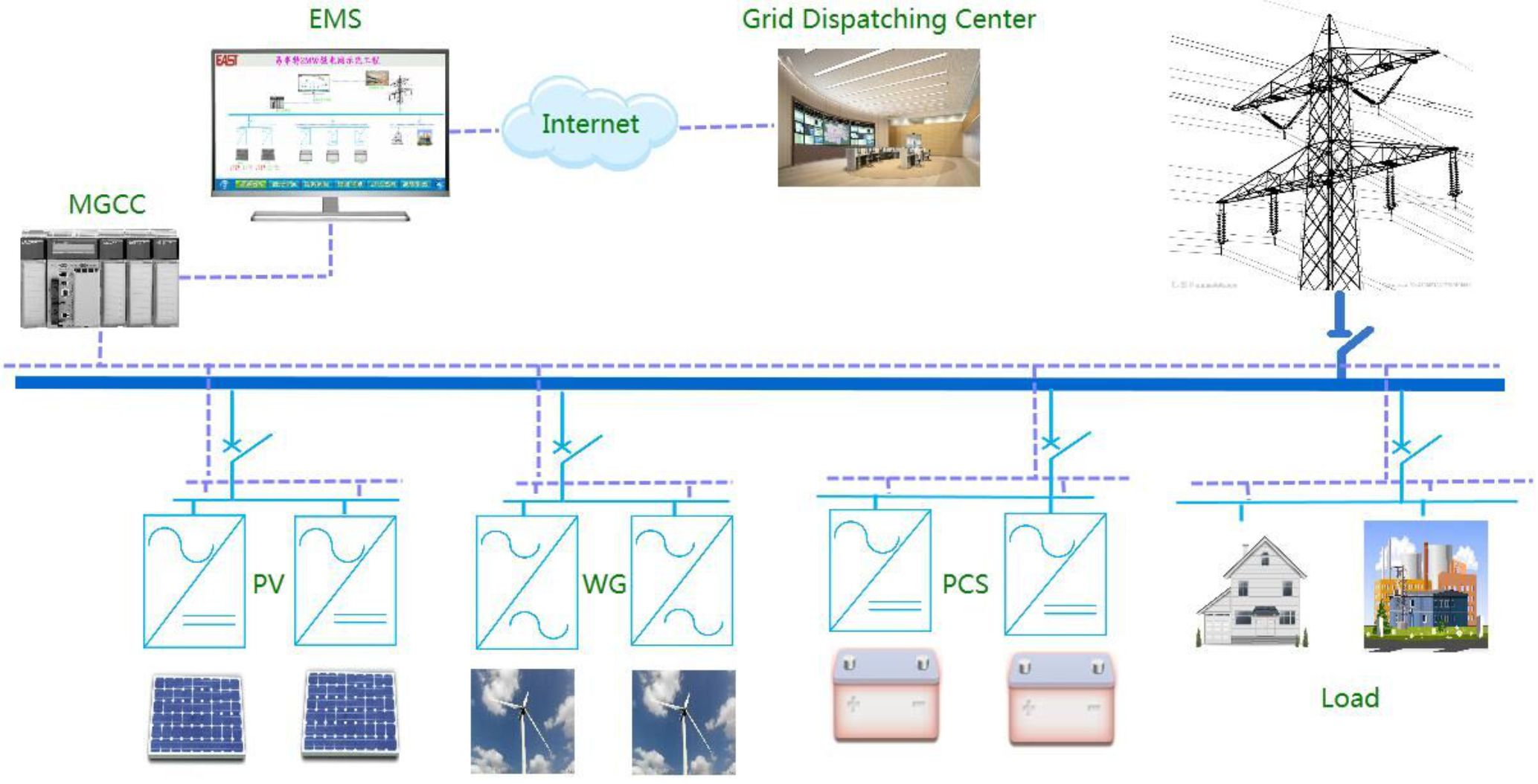

The typical grid-connected micro-grid system mainly consists of wind power generation system, PV power generation system, energy storage system, micro-grid central control system (MGCC) and energy management system (EMS).
System characteristics
The system adopts three-layer control structure. The top layer is EMS, the intermediate layer is the micro-grid central control system and the bottom is underlying devices.
The system has two operation modes, grid-connected and off-grid modes. Smooth switching can be done between them.
The system can make predictions for PV, wind power and loads to realize the economic operation of micro-grid system.
System functions
New energy power generation in factory, business circles and industrial park
Achieving power frequency modulation and peak load shifting
Clean energy, energy saving and emission reduction
02. Off-grid Micro-grid System Solutions (capacity > 100kw)
System configurations

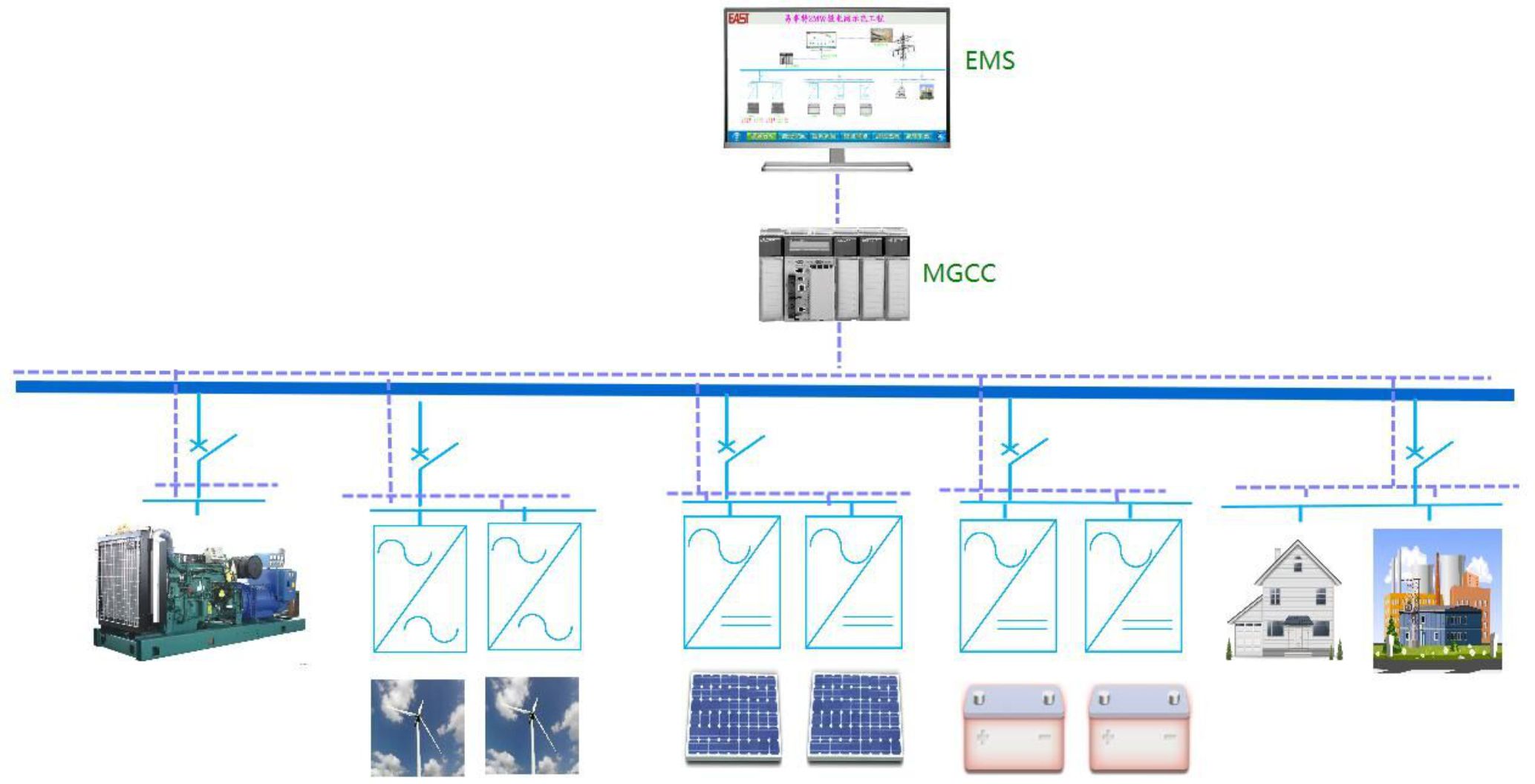

The typical off-grid micro-grid system (capacity > 100kw) mainly consists of diesel generators, wind power generation system, PV power generation system, energy storage system, micro-grid central control system (MGCC) and energy management system (EMS).
System characteristics
The system adopts three-layer control structure. The top layer is EMS, the intermediate layer is the micro-grid central control system and the bottom is underlying devices.
The system operates in off-grid mode. Energy storage system or diesel generator provides voltage and frequency support for the whole micro-grid system.
The system can make predictions for PV, wind power and loads to realize the economic operation of micro-grid system.
System functions
New energy power generation in medium and large islands, and remote country area without electricity
Wind-solar-diesel storage system supplies power independently and each micro-source accepts the dispatching of EMS
Clean energy, energy saving and emission reduction
03. Off-grid Micro-grid System Solutions (capacity < 100kw)
System configurations

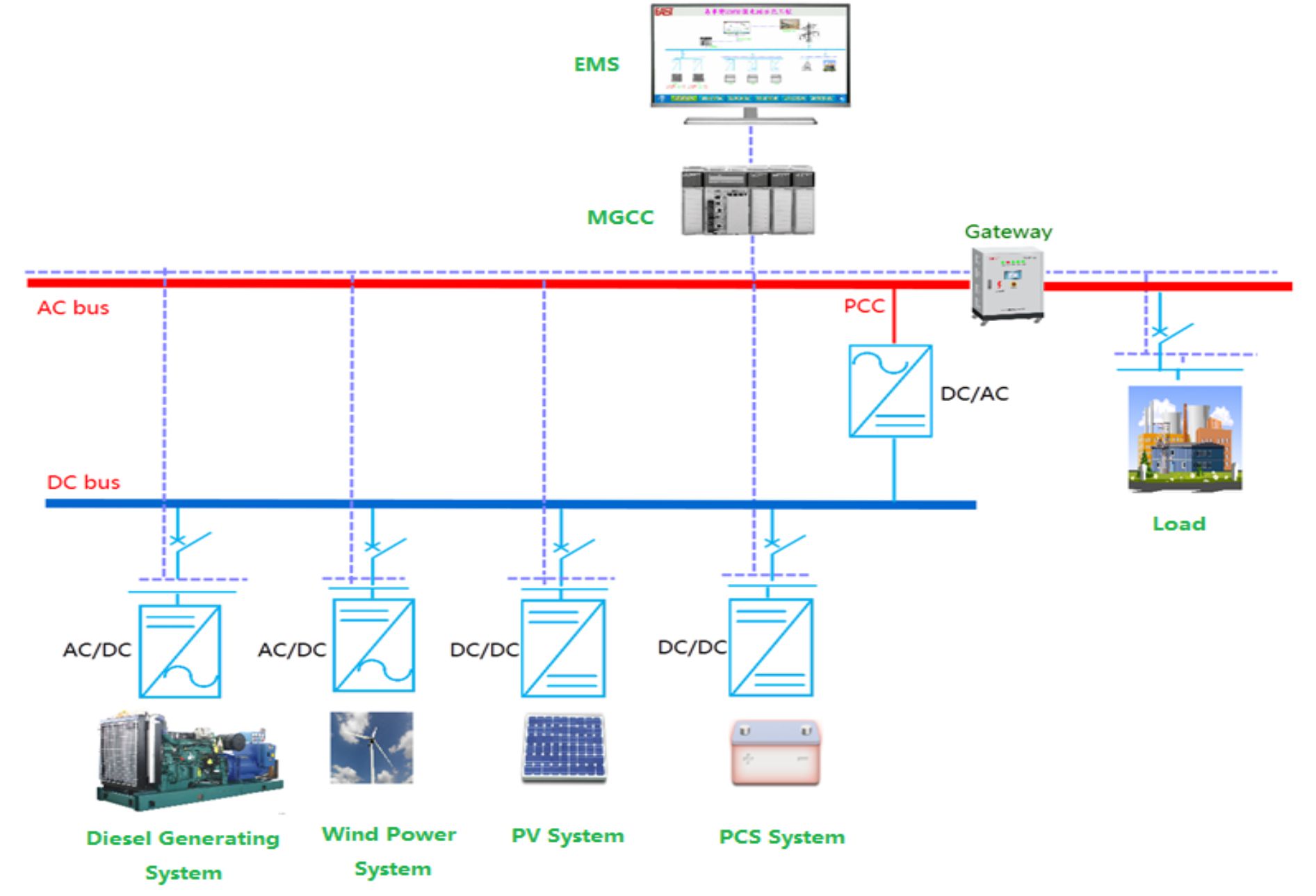

The typical off-grid micro-grid system (capacity < 100kw) mainly consists of diesel generators, wind power generation system, PV power generation system, DC energy storage system, AC energy storage system, micro-grid central control system (MGCC) and energy management system (EMS).
System characteristics
The system operates in off-grid mode, and is composed of two parts of DC power supply and AC inverter.
The output of new energy power generation unit is connected to DC bus; AC inverter unit provides a stable power supply for loads.
The system can make predictions for PV, wind power and loads to realize the economic operation of micro-grid system.
System functions
New energy power generation in small islands and remote rural areas;
Wind-solar-diesel storage system supplies power independently, and each micro-source accepts the dispatching of EMS
Clean energy, energy saving and emission reduction
04. Energy Storage System Solutions
System configurations

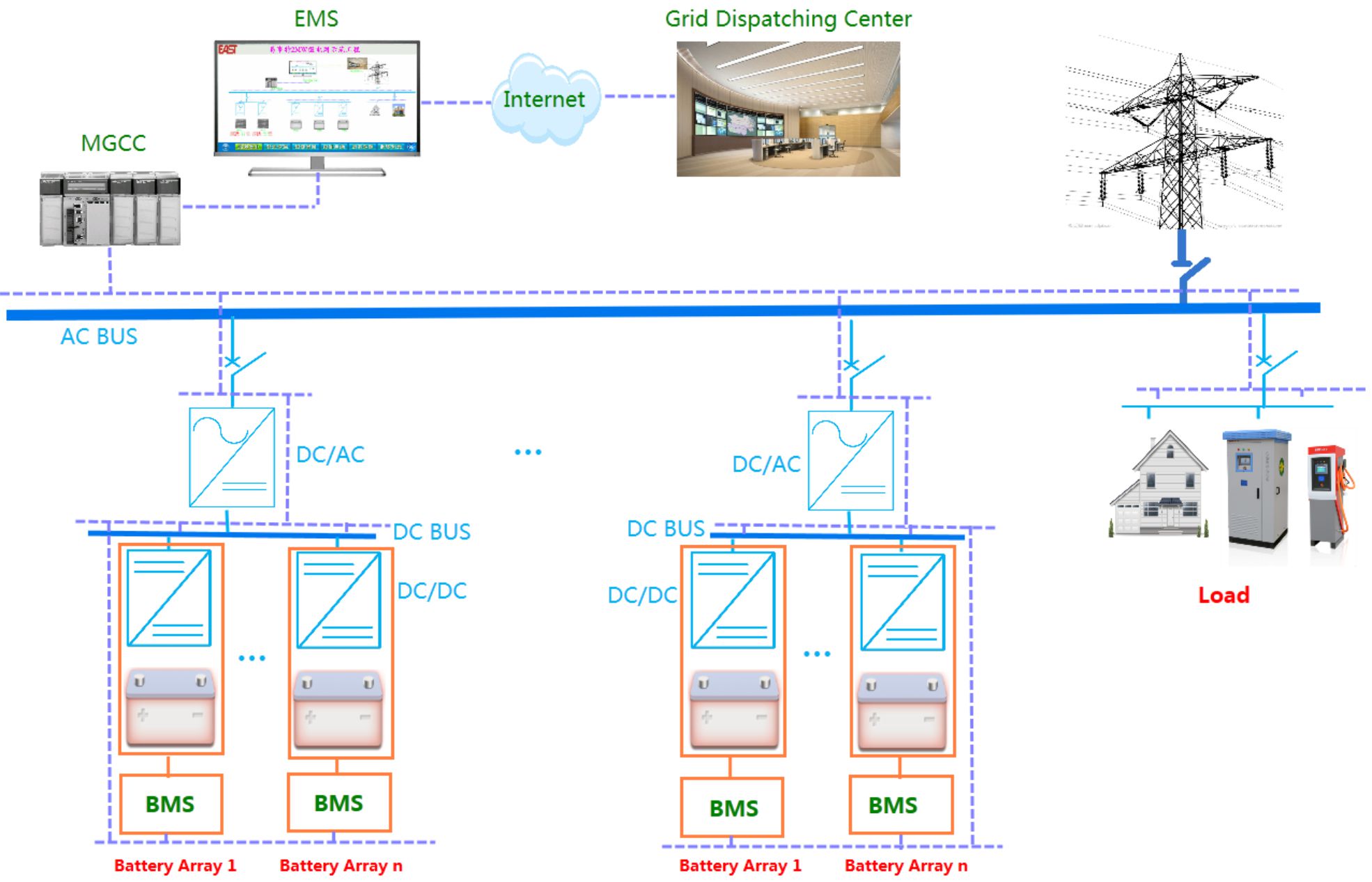

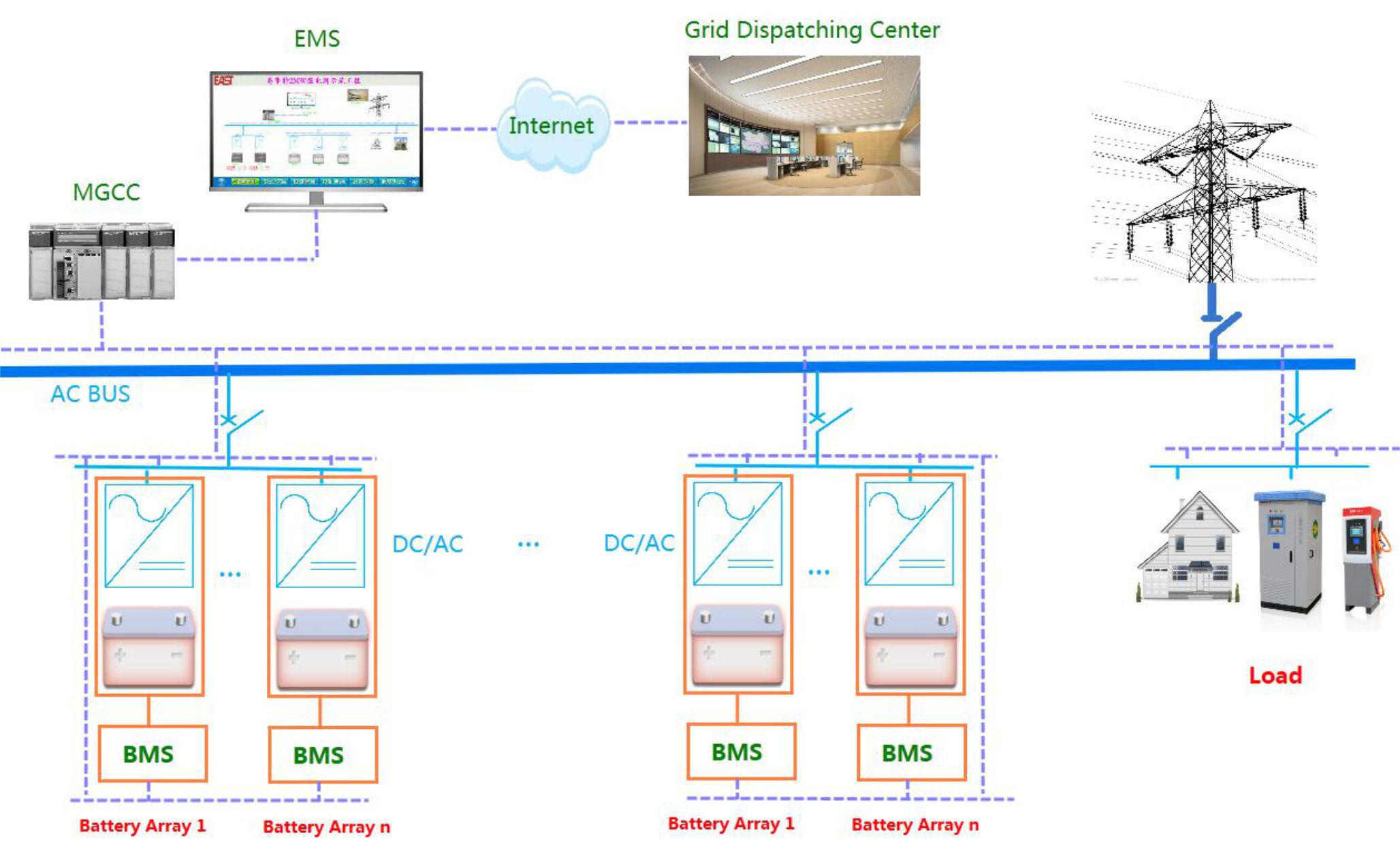

The typical energy storage system mainly consists of battery banks, BMS, bi-directional DC/DC converter, energy storage converter, central control system and energy management system (EMS).
System characteristics
EMS implements control of peak load shifting and power frequency modulation.
The overall design of the system is container type, which is easy to be replaced and removed.
Battery management adopts advanced BMS for accurate measurement of power and electricity for the energy storage system.
System functions
Energy storage power station is capable of peak load shifting and power frequency modulation
Equipped with function of emergency power supply
Equipped with effective communication, monitoring, alarming and protection functions
